Disclaimer:  This site contains the currents results of ongoing research and is not a finished presentation of findings.  The information on this site may be the results of a small sample of tests and are NOT conclusive evidence of anything – they are just my results. Take them for what they are.  Any conclusions drawn from these results are yours and not are necessarily mine.  Go the Load Lab Home to read the complete disclaimer.

Test date: November 18, 2008
Item: 3/16" imported quick link
WLL: 660 lbs (package said 616 lbs, but 660 was marked on the hardware)
Rigged: in a standard fashion
Sample size: 1
Breaking strength: 4906 lbs
DF: 7.43
Note: link broke – threads did not fail

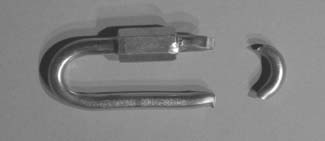

Broken quicklink
