New Destructive Testing Rig

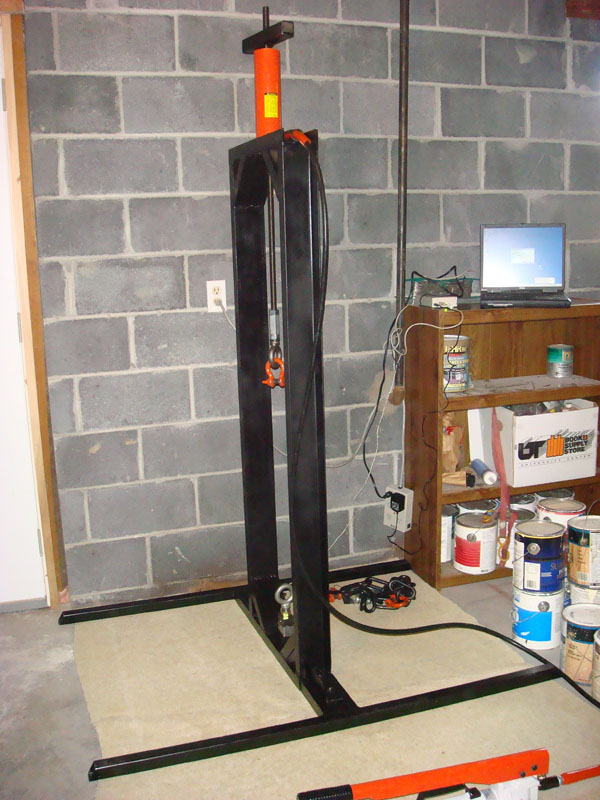

View #1 of new Destructive Testing Rig

10 ton center hole hydraulic cylinder (8" stroke)
hydraulic hand pump
5 ton capacity load cell
Computer displays load








View #2 of new Destructive Testing Rig

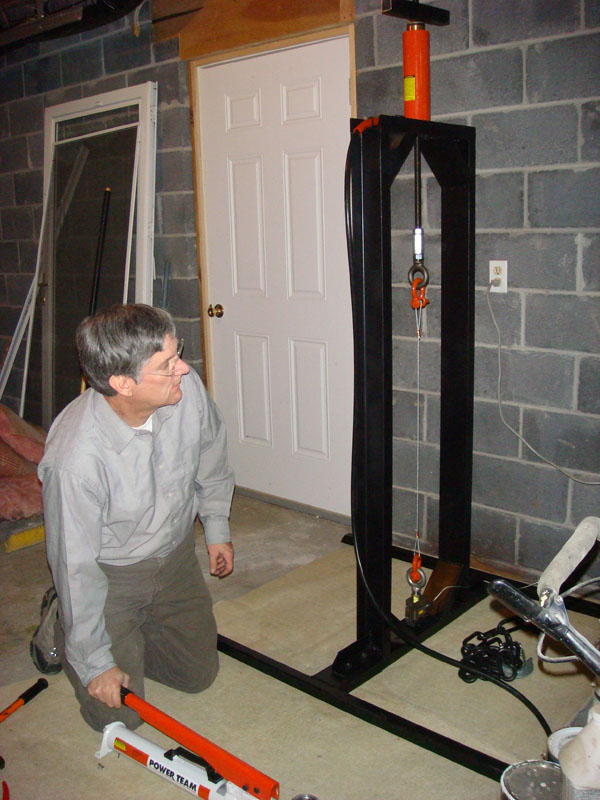

Me watching display as I pump
Rig is set up in my basement
(and Yes, I will soon build a table to put to pump on so I will not be kneeling on the floor)

The center hole cylinder lifts the 3/4" Grade 8 threaded rod, putting tension on the sample.  The piece of 1.5" x 1.5" steel
tubing on the top has a nut welded to it and is used to adjust the length of the threaded rod.
